Name: European Bow Type Commercial Shackle
Brand: Qingdao Zhonghe Heavy Industries Co., Ltd.

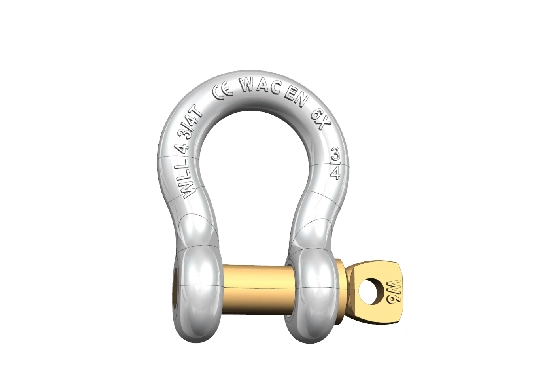

European Bow Type Commercial Shackle

The European Bow Type Commercial Shackle is a type of lifting shackle commonly used in industrial and commercial settings for lifting and rigging applications.

The shackle is made of high-strength alloy steel and features a bow-shaped design with a threaded pin that can be easily tightened or loosened by hand. The shackle is designed to connect chains, cables, or wire ropes and is often used in applications such as lifting, towing, and rigging.

The European Bow Type Commercial Shackle is available in different sizes and weight capacities to meet different lifting needs. It is important to use the appropriate size and weight capacity of the shackle for the job to ensure safe and efficient lifting operations.

Specifications of European Bow Type Commercial Shackle

Size d	WLL (Kg)	(Kg/100pce)	Dimensions					Tolerance
Size d	WLL (Kg)	(Kg/100pce)	A	B	C	D	R	Tolerance
5	80	1.9	10	11	18	5	8	±5%
6	97	3.4	12	13	24	6	10	±5%
8	200	7	15	17	30	8	11	±5%
10	320	13	18	19	39	10	15	±5%
11	400		21	21	42	11	17	±5%
12	520	26	24	23	49	12	18	±5%
14	600		27	27	55	14	21	±5%
16	800	50	30	32	65	16	25	±5%
20	1100	80	36	38	72	20	29.5	±5%
22	1500	130	42	41	87	22	34	±5%
25	2100	200	49	54	99	25	38	±5%
28	3000	310	54	65	109	28	45	±5%
32	3500	430	61	69	121	32	49	±5%
38	5000	700	72	81	144	38	60	±5%
45	7000	1250	86	91	171	45	71	±5%
50	8000	1750	97	103	190	50	74	±5%
57	10000		109	124	219	57	81	±5%
65	13980		121	133	247	65	95	±5%
Production Process	Upset Forging
Material Grade	Carbon Steel for Shackle body and Pin
Safety Factor	4:01
Finish	Hot Dip Galv.
Supply Certificate	Mill Test Certificate According to EN 10204 3.1; Under request, CCS/ABS/DNV third party
Supply Certificate	Inspection certificate can be supplied, but the cost would be extra to buyer account.
